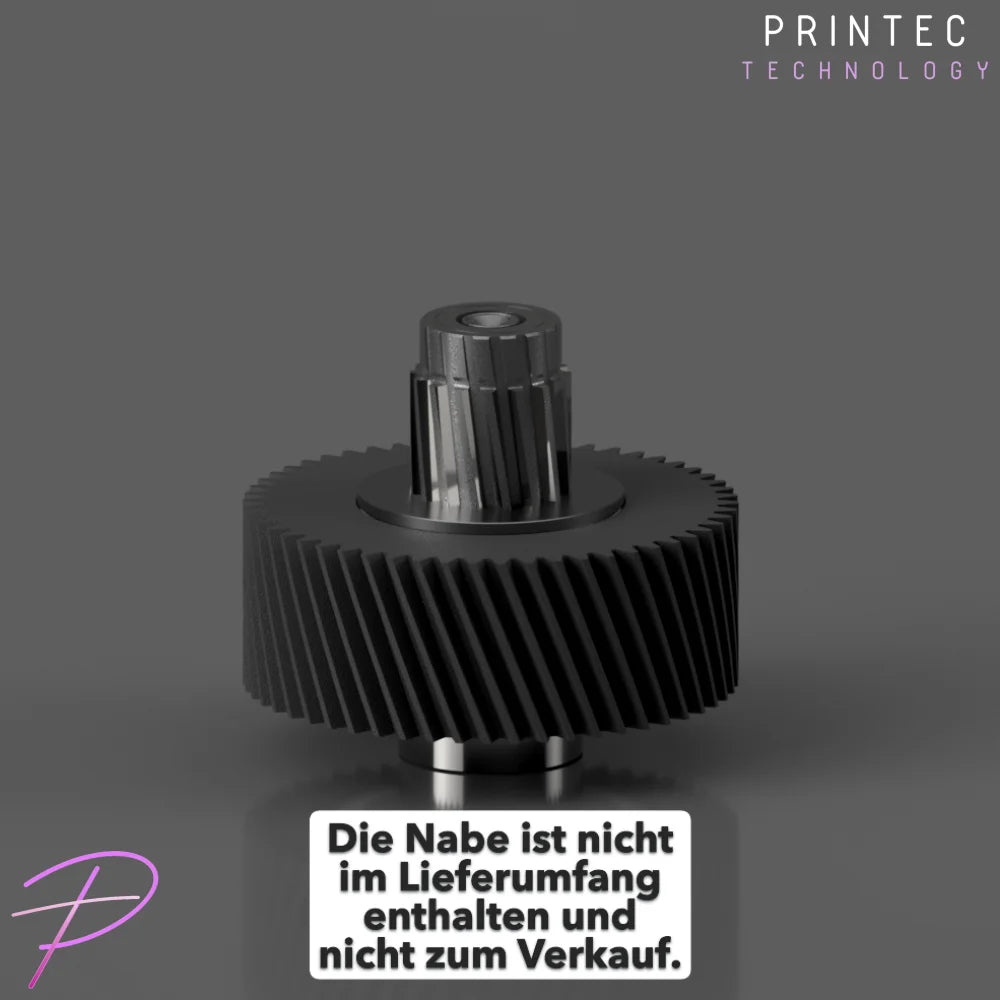

“High-quality replacement gear for Yamaha PW-X and PW-X2 e-bike engines – robustness, precision and reliability”

This high-quality replacement gear was specially developed for the Yamaha PW-X and PW-X2 e-bike motors and meets the highest standards of quality and reliability. Made in Germany, it is characterized by an extremely robust construction made of polyamide 12, reinforced with 15-20% carbon fiber. This material combination ensures exceptional stability and durability.

Thanks to precise manufacturing technology, the gear ensures that your electric bike runs smoothly and reliably. It is an indispensable spare part that ensures the long-term performance of your e-bike and ensures that it is kept in optimal condition over the long term. For a safe and comfortable ride - in every situation.

ℹ️ Material ℹ️

• High strength polyamide 12 and long chain polyamide, reinforced with 15-20% carbon fiber.

✅️ Compatibility ✅️

• The gear is compatible with e-bikes equipped with the Yamaha PW-X and PW-X2 engines.

⚠️ Technical data ⚠️

• Outer diameter: 59.50 mm ± 0.15mm
• Number of teeth: 54T.
• Height: 20.00 mm ± 0.15 mm
• Heat resistant up to: approx. 205°
• Color: Black

✅️ Scope of delivery ✅️

• 1x Replacement gear for Yamaha engines PW-X, PW-X2 (drive shaft not included).

ℹ️ Installation instructions ℹ️

1. Make sure that there are no foreign objects such as abrasion, wear particles, defects or dirt in the motor. If any of the above criteria apply, we recommend dismantling the motor and cleaning it thoroughly. Also use fresh grease when assembling the gear to ensure optimal function and longevity.
2. Before installing the gear, make sure that the freewheel function is working properly. To check this, hold the plastic gear and turn the drive shaft: the shaft should lock in one of the two directions.
3. The replacement gear is pressed onto the drive shaft using a small hydraulic press, a mandrel press or alternatively a vice (see assembly video).
4. Please install the gear according to the instructions in the assembly video and ensure that it is precisely and straightly aligned on the drive shaft.

If you have any questions or need support, our "Online Shop Chat" is available to help you.

“Take optimal care of your e-bike with this high-quality spare part!”
